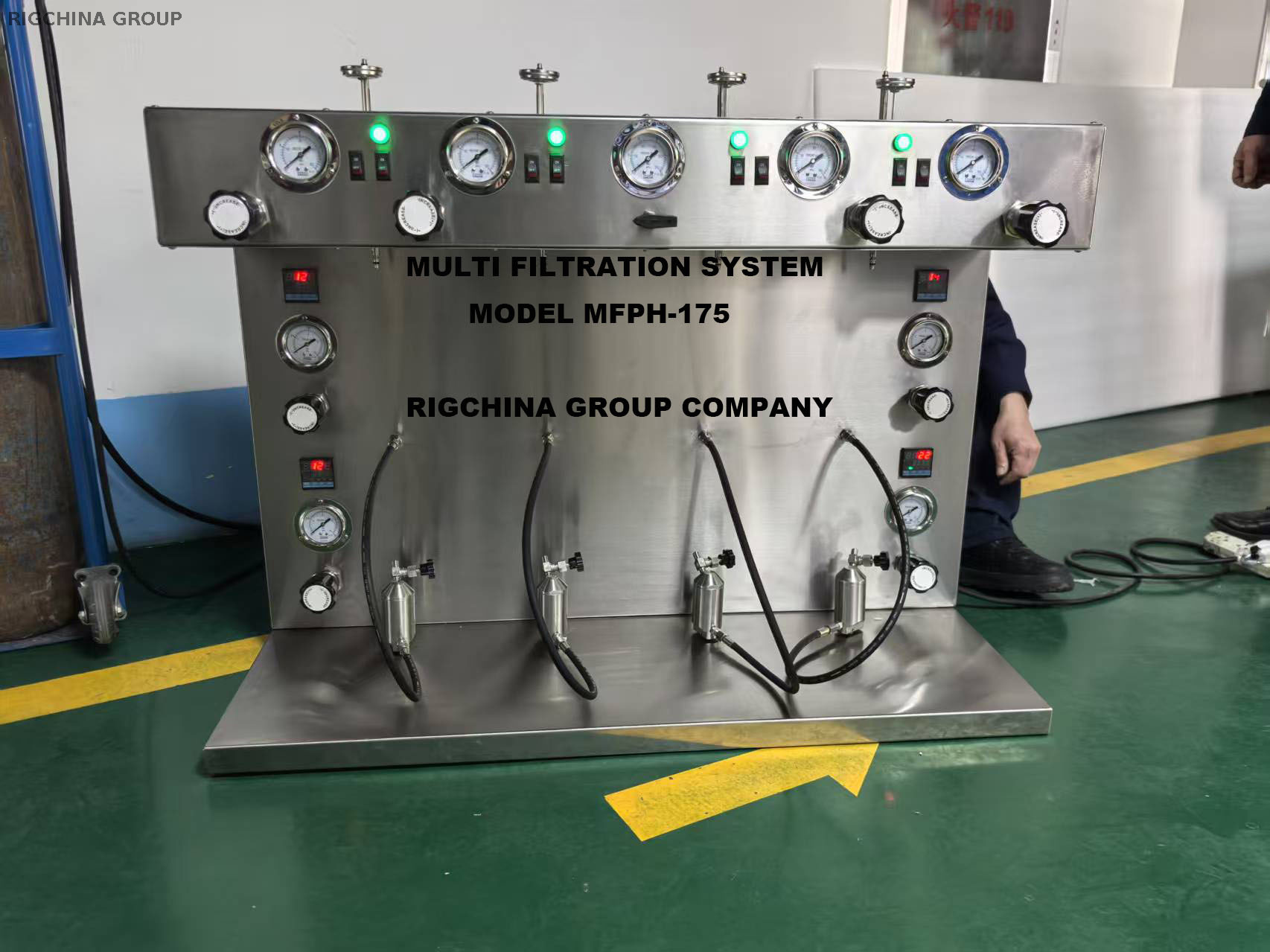

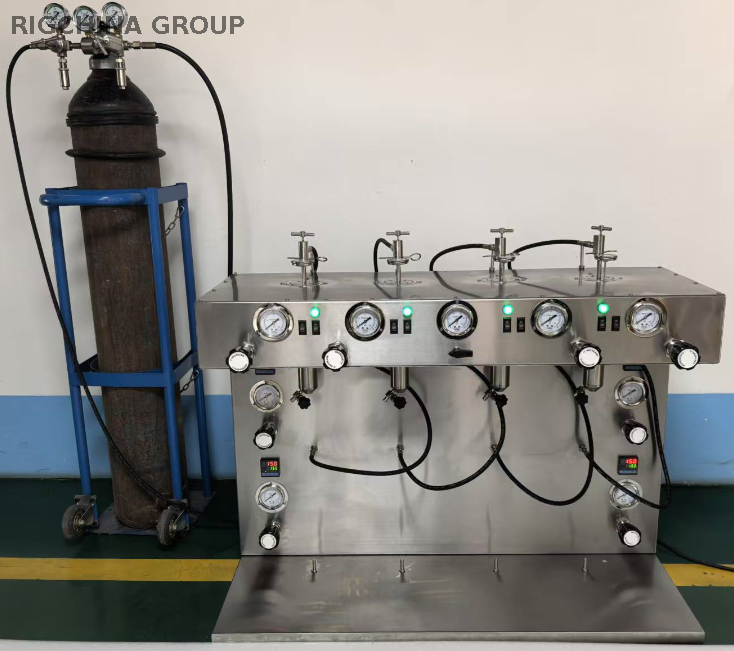

Multiple Unit Filter Press, HTHP, 175 mL, 4 Unit,Model MFPH-175

Description

The new 4-Unit HTHP (also known as HPHT) Filter Press from RIGCHINA is ideal for

high-volume laboratory testing. It accommodates four 175-mL HTHP filter press cells.

Each cell has a separate electronic temperature controller and two separate pressure

regulators (drive pressure and back pressure). This allows each cell to be heated and

pressurized independently, while still sharing a single pressure source.

Features

Four independent test stations

Electronic temperature control

Drive pressure and back pressure regulators for each cell

Single pressure source

Complete with all accessories necessary to run four simultaneous tests

Specifications

Maximum Temperature: 425°F (218.3°C)

Maximum Drive Pressure: 1,350 PSI (9.3 MPa)

Maximum Back Pressure: 750 PSI (5.2 MPa)

Cell Size: 175 mL (test cells sold separately)

Pressure Requirements: 3,000 PSI (20.7 MPa)

Power Requirements: 230-Volt AC Power Sources
