Manual Core Saturator, Model BH-3
Core Saturator, BH-3,The system for saturation of core samples (saturator) is intended to saturate the core samples brine, oil or other formation fluids sequential operation vacuum evaporation and saturation.

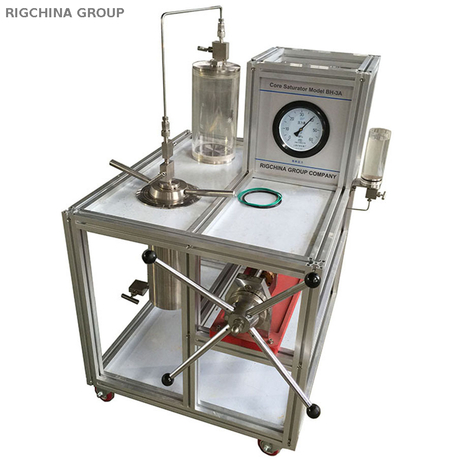

Core Saturator is a core sample saturation system that consists of a vacuum/pressure control panel, one or two saturation vessels, a pneumatic pump, and a vacuum pump. The system allows complete saturation of multiple core plugs or whole core samples at pressures up to 2000 psi and maintained at this pressure independent of temperature fluctuations.
The Core Saturator, BH-3 offers a pneumatic pressure control system for ease of use and increased efficiency. With the pneumatic pressure system the operator simply opens a valve to the pneumatically operated pump for system pressurization. A preset pressure regulator controls the maximum pressure capability of the pump for unattended pressure maintenance. The included stand allows a small and full diameter pressure vessel to be mounted for convenience.
Available accessories include plug sample trays, up to 3 of which can be accommodated and dead volume sets. Use of sample containers is recommended to help minimize grain loss and to insure complete saturation of samples by keeping them immersed in saturating fluid when removing them from the Auto Saturator. Dead volume sets reduce the amount of saturate required to fill the Core Saturator when there are insufficient samples to completely fill the system.
FEATURES:
• Pneumatic pressure control system
• Plug sized sample pressure vessel incorporates a large internal diameter for use with full diameter samples when necessary.
• Wetted materials of construction are 316 Stainless Steel, Teflon™, buna-n, and polyethylene for long lasting corrosion resistant operation.
• A dead volume set is available for minimizing the amount of saturant necessary when small sample volumes are placed into the pressure vessel.
SPECIFICATIONS:
Core Cell Inside Diameter: 2 to 6 inches
Core Cell Inside Length: 10 inches or specified
Pressure: 2,000 psi
Can perform core flood experiment with saturated rock sample
Choice of saturator: Injects water or brine into sample
Saturation cycle parameters can be customize during each step by operator
Wetted materials of construction are SS-316 Stainless Steel
Saturating Fluid: SS-316 Stainless Steel
Power Supply: 115/220V, 50Hz/60 Hz
Scope of Supply:
Saturation Chamber; Maximum Working Pressure 2,000 psig
Sample Trays
Dead Volume Set
Vacuum Pump
HPLC Pressurization Pump
