Digital Resistivity Meter Model RC-88C
Used to measure the resistivity of fluids, slurries or semi-solids.
Resistivity meters measure the resistivity of fluids, slurries or semi-solids. Conductivity of the medium being measured is obtained by taking the reciprocal of the resistivity measurement. These solid state electronic instruments are designed to meet the needs of field and laboratory personnel for resistivity measurement according to API procedure.

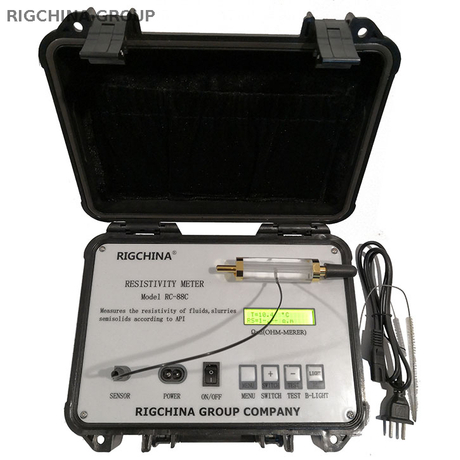

The RIGCHINA Digital Resistivity Meter is a portable measuring instrument designed to give a quick, reliable measurement of the resistivity from a small sample, expressed in Ohm-Meters. This transistorized meter accurately measures the resistivity of fluids, slurries, and semi-solids with resistivities from 0.2 to 100 Ohm-Meters. In addition to resistivity, the device also displays temperature.

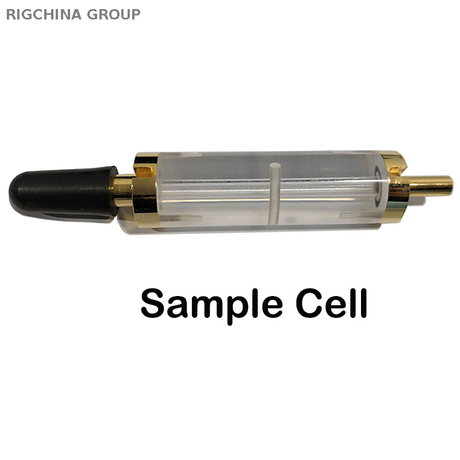

A built-in temperature probe provides direct measurement of the sample temperature in the transparent Lucite cell. The instrument features an easy-to-read LCD display for high accuracy. The meter is battery powered and is rugged enough for field usage.
Resistivity Range: 0.01 to 100 Ohm-Meters
Temperature Range: 10 to 50℃
Digital Resistivity Meter Specifications |
Part No. | Model | Description & Technical Parameters | Remark |
147-85 | RC-88C | Resistivity Range: 0.01 to 100 Ohm-Meters
Temperature Range: 10 to 50oC(50 - 122°F ) Cell Length: 3.4" (86.4 mm) Internal Rechargeable Batteries or AC 230V Carrying Case: 10.4" × 7.9" × 5.9" (265 × 200 × 150 mm) Gross Weight:5kg (11 lbs) |
|
